Brand:
Foxwell
R4,799.00
Inclusive All Taxes
This Product Is Sold By DIATOOLS To Ask A Question, Click Ask A Question Below
Seller
DIATOOLS
Description

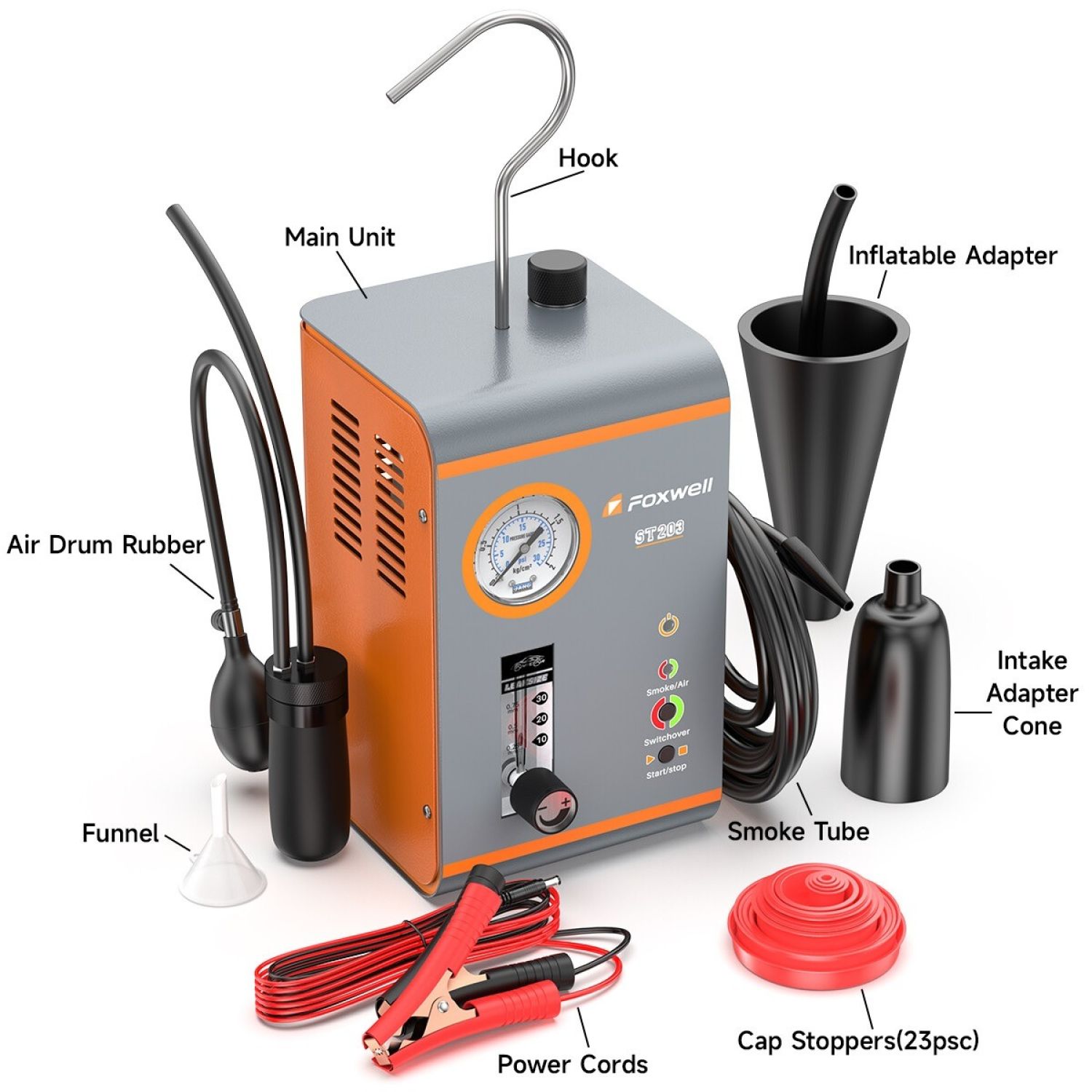

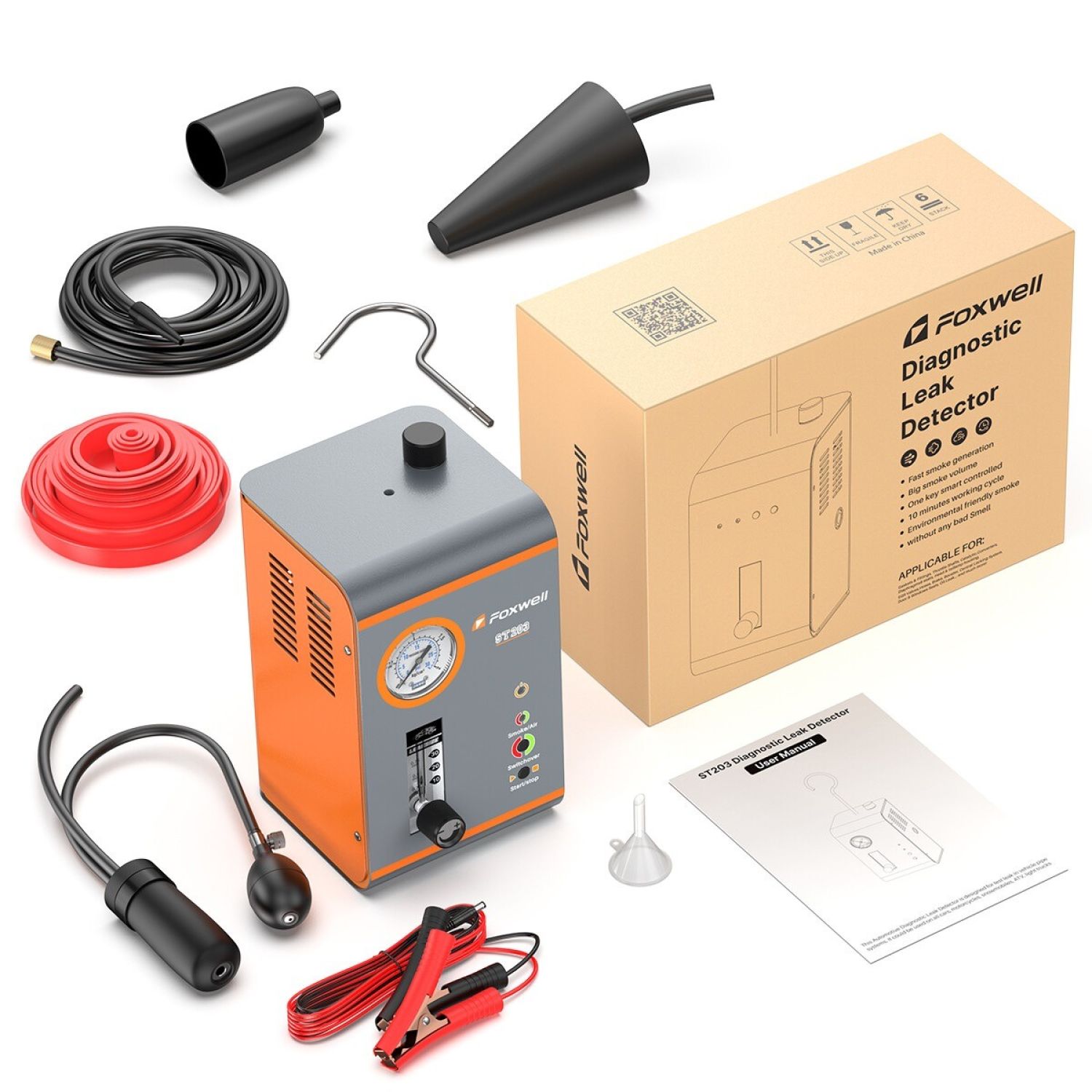

FOXWELL ST203 Automotive EVAP Smoke Machine Diagnostic Vacuum Leak Detector Tool Built-in Air Pump
Car Pipe Leakage Diagnostic Tester
FOXWELL ST203 Advanced Features
Built in air pump
• No air compressor needed. Just connect straight to your vehicle's 12V battery and generate smoke in
seconds!
Build in Pressure gauge
• To monitor total system pressure. Smoke mode to introduce smoke into vehicle system for leak
detection.
Adjustable Flow Meter
• Air Flow meter with adjustable button, easy to control the smoke effect (output flow:<7L/Min)
Dual Mode
No need to buy extra air compressor
Air Mode: Air mode can help you test whether there is a leak in the pipe by injecting air into the pipe, and
judge by the sound made when the air leaks. You don't have to buy
additional air compressor or air pump, which makes your diagnosis easy and cost-effective.
Smoke Mode: Smoke mode help you locate the leak accurately through the visible smoke. The smoke can be
produced within seconds, dramatically reducing diagnostic time.
BUILT IN AIR PUMP
No air compressor needed. Just connect starlight to your vehicle's 12V battery and generate smoke in seconds!

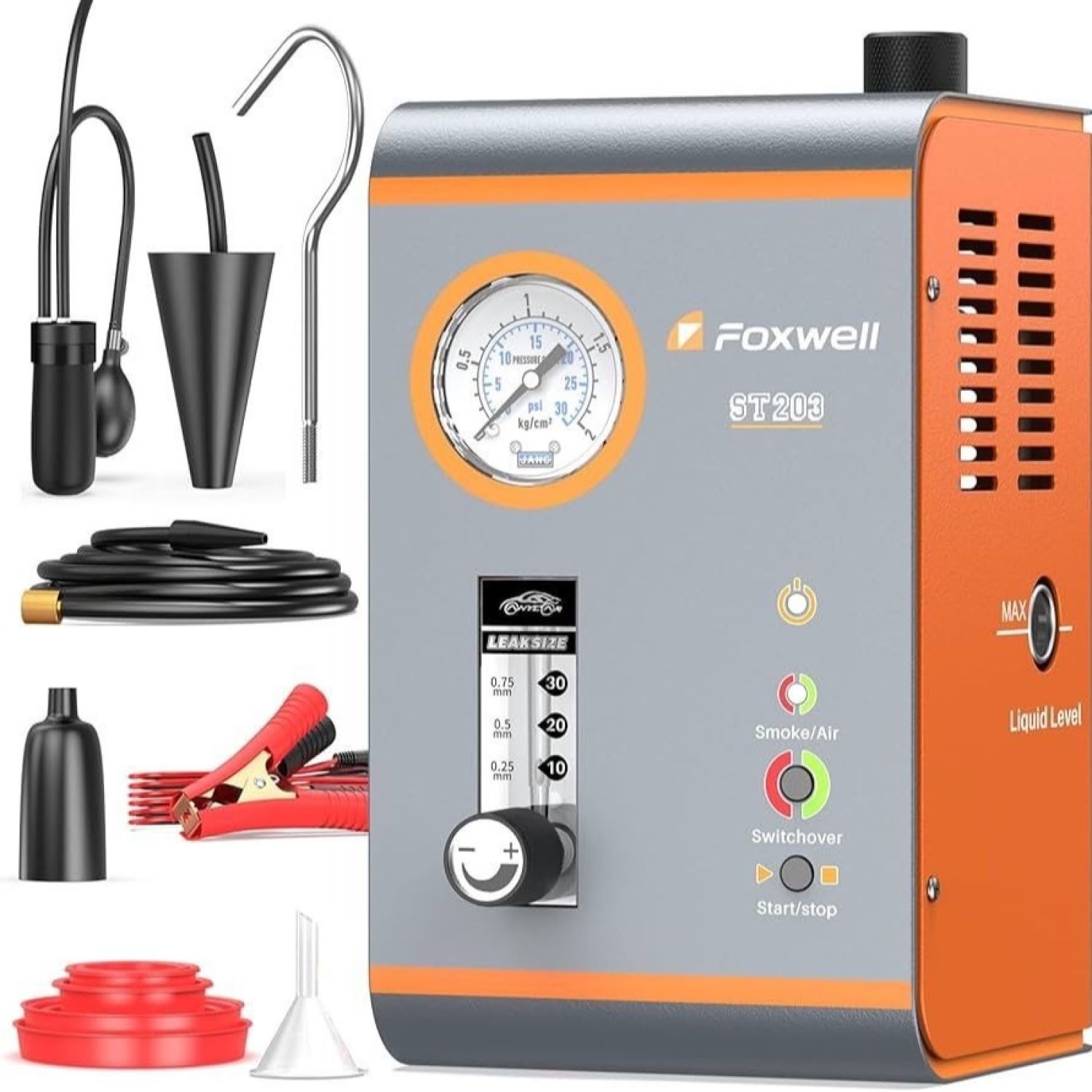

Pressure Gauge
No Leak: When the value of the pressure gauge remains unchanged, it indicates that there is no leakage in the
system.
Small Leak: When the value of the pressure gauge drops, it indicates a small leak in the system.
Massive Leak: When the value of the pressure gauge reaches zero, it indicates a massive leak in the system.
Adjustable Flow Meter
Air Flow meter with adjustable button, easy to control the smoke effect (output flow:<7L/Min)

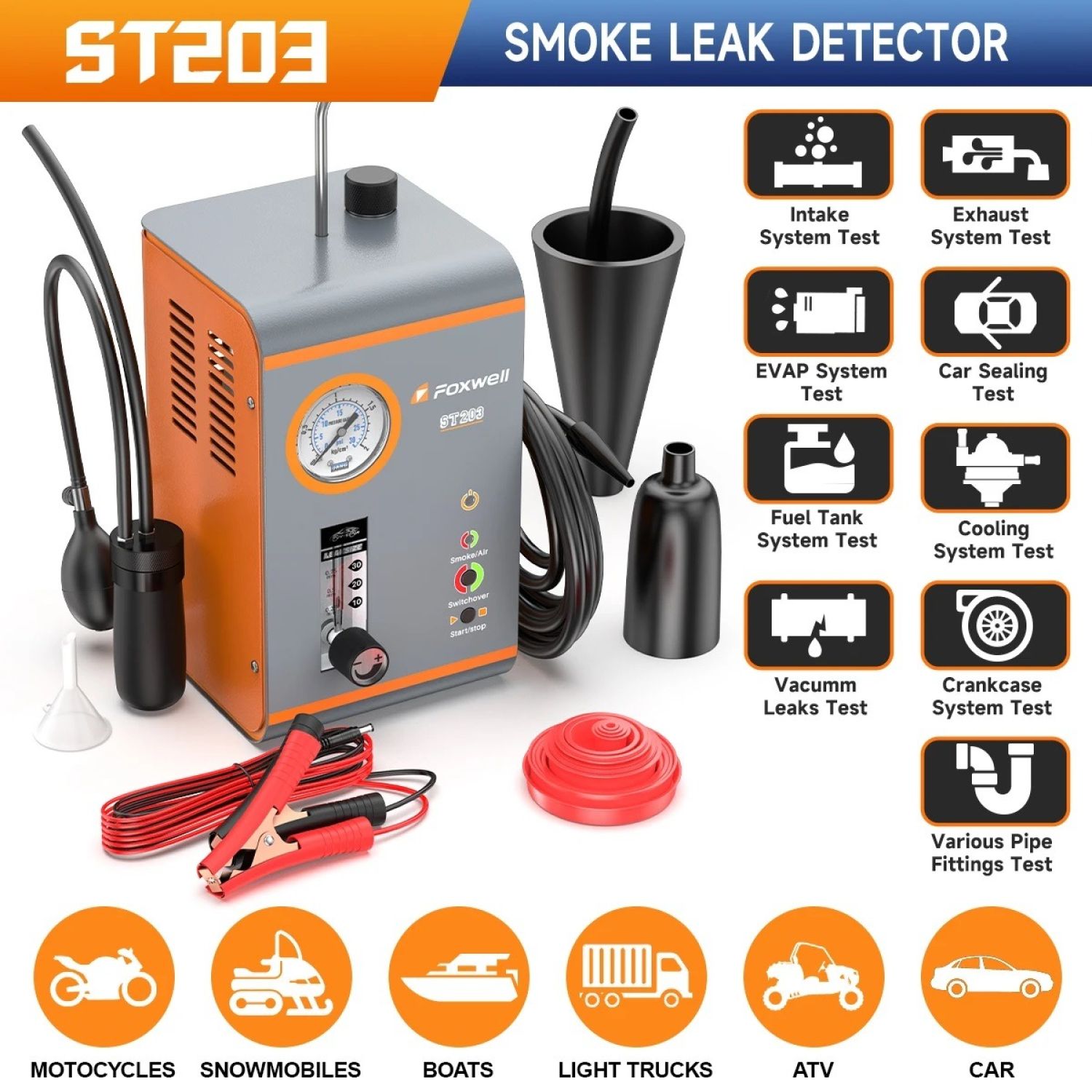

Wide Coverage
Suitable for all domestic cars, motorcycles, snowmobiles, off-road vehicles, beaches. Cars, light trucks and
speedboats, etc. Using together with automotive diagnostic tool, you can find the vehicle problem accurately
and diagnose fault.
How to do leakage test？
1.Turn OFF the ignition of the vehicle.
LEAK TEST OF VEHICLE SYSTEMS REQUIRES THE ENGINE TO BE OFF
2.Dismantle the air filter and the throttle connections.
3.Clean the inner wall of the intake opening to avoid sharp objects and put the Universal Intake
Adapter into the opening
4.Connect the Power Cord to 12V vehicle battery.
5.Now the Power LED would be ON, if else check the power supply.
6.Introduce the smoke nozzle into the system via the Adapter Cone
7.Press Air Control Switch, wait for 30 seconds until the system is pressurized, and check the
Pressure Gauge & Flow Meter reading for leak status, if the unit is equipped with Pressure Gauge & Flow
Meter
8.Press Smoke Control Switch, .unplug and Plug back the smoke nozzle back into the Cone Adapter when
there’s obvious smoke coming out of the smoke nozzle
9.The system will be ready for leak check in 2 minutes. Use a bright light torch or working lamp to assist
10.After test, press Smoke Control Switch again to stop the unit from generating smoke and
press Air Control Switch to stop generating pressurized air
11.Collect the Smoke Hose and the Power Cord with the Velcro Straps for storage. Hang the unit or make it
stand in UPRIGHT position only. Do NOT lay it down.
Smoke Oil Choose
The equipment is compatible with mineral oil-based baby oil like Johnson & Johnson Pink bottle. Pure #5 white
oil is the best choice if available.
Caution!!!
1.When you use this FOXWELL ST203 Car Smoke Leak Detector for the first time, fill with 20ml oil. Please be
careful NOT to beyond this range.
2.The testing liquid: both liquid paraffin and baby oil are OK.
3.Fresh oil can be filled with only when the smoke gets thin, and it can’t be filled over 20ml each time.
4.Before filling fresh oil, please pour out the left oil in the detector & replace the detector oil regularly.
5.During the process of leak detection, please keep away from smoke-sensitive parts.
6.Do NOT run the detector over 8 minutes continuously. It needs interval rest.
7.The detector has an intelligent protector, if it exceeds the working limit, such as over 75 ℃, it will
automatically turn off the power. In this case, please operate it later.
8.The round part of this detector has temperature, please be careful to avoid burns.
9.If the test pipe needs to be disconnected in the middle, please secure the other side with a rubber stopple.
10. Please do not fill full the test oil when the test to avoid oil leakage and splashing. Just pour in two thirds of
the test oil.
Warning !!!
- Operator shall have basic knowledge about structure of vehicle and the engine. Vehicle service book is
required.
- To ensure better test result, it’s required there’s no wind in the operating area.
- Do NOT use the product on smoke sensitive component. Eg. Smoke residual might reduce sharpness of head
lights if apply to head light housing.
- ONLY low-density mineral oil-based fluid is allowed to use as smoke oil. Johnson & Johnson’s baby oil(pink
label) is compatible. Use funnel to avoid spread the oil to other parts of the unit.
- Check oil level before use, if oil level is lower than the middle of the gauge, the unit would need a refill, but
do not overfill the unit beyond the gauge.
- The product is only allowed to use while ignition’s off. Be sure to use 12V vehicle battery, and the battery
shall be full charged and voltage not lower than 12V.
- Use bright light torch/ halogen light to help find the leaks.
Wear goggles if available
